Vukicevic et al., (2014)#

This application computes the tropical cyclone (TC) multi-scale intensity (MSI) in accordance with that described by Vukicevic et al., (2014).

Configuration#

The following table provides and describes the configurable variables for the application. Note that if a Default Value is missing, the respective variable is mandatory.

Variable	Description	Default
`drho`	Incremental radial distance (meters) for polar coordinate grid computations.	40000
`dphi`	Incremental azimuthal angle (degrees) for the polar coordinate grid computations.	45
`max_radius`	The maximum radial distance (meters) for the polar coordinate grid.	200000
`max_wn`	The total number of wave-numbers for the spectral decomposition.	3
`output_file`	The netCDF-formatted file path to contain the variables specified in `output_varlist`; only written if `write_output` (below) is `True`.
`output_varlist`	The file path for the YAML-formatted file containing the list of output variables.
`write_output`	Write the variables specified in `output_varlist` to the netCDF-formatted file path described in the TC MSI configuration file.	`False`

The contents of an example TC MSI YAML-formatted configuration file follows.

app_module: tcdiags.vurk2014_msi
app_class: VURK2014
schema: !ENV ${TCDIAGS_ROOT}/parm/schema/tcdiags.vurk2014_msi.yaml
drho: 50000.
dphi: 1
max_radius: 1200000.
max_wn: 3
write_output: true
output_file: ./tcdiags.vurk2014_msi.%s.nc
output_varlist: !INC /home/ufs_tcdiags/parm/io/tcdiags.vurk2014_msi.yaml

Note that the application assumes that the environment variable TCDIAGS_ROOT has been defined and points to the top-level directory of the ufs_tcdiags repository clone. Further, the output_varlist points to a YAML-formatted file containing the variables to be written to output_file if write_output is True. The default file for the application appears as follows.

wnds10m:
  name: |
       magnitude of the total 10-meter (near-surface) wind field
  units: meter_per_second
  description: |
       Polar projection for the 10-meter total wind field.

Also included automatically within the netCDF-formatted output file are the wave-number decompositions for the 10-meter wind field. The total number of wave-numbers in the spectra are defined the max_wn in the table above. An example snippet from the netCDF-formatted file follows.

user@host:$ ncdump -h ./tcdiags.vurk2014_msi.21L.nc

dimensions:
        radial = 25 ;
        azimuth = 362 ;
        wavenumber = 3 ;
variables:
        double radial(radial) ;
                radial:_FillValue = NaN ;
        double azimuth(azimuth) ;
                azimuth:_FillValue = NaN ;
        double wnds10m(radial, azimuth) ;
                wnds10m:_FillValue = NaN ;
                wnds10m:description = "Polar projection for the near surface total wind field magnitude.\n" ;
                wnds10m:name = "magnitude of the total 10-meter (near-surface) wind field\n" ;
                wnds10m:units = "meter_per_second" ;
        int64 wavenumber(wavenumber) ;
        double wnds10m_spec(wavenumber, radial, azimuth) ;
                wnds10m_spec:_FillValue = NaN ;
                wnds10m_spec:name = "wavenumber spectra for the 10-meter wind field" ;
                wnds10m_spec:description = "Polar projection for the near surface total wind field wave number spectra." ;

Running the Application#

The TC MSI application can be executed using a variety of methods. Each is described below.

Terminal#

The TC MSI application may be executed within an supporting environment as follows.

user@host:$ export PYTHONPATH="/path/to/ufs_tcdiags/ush":"${PYTHONPATH}"
user@host:$ cd /path/to/ufs_tcdiags/scripts
user@host:$ ./compute_tcdiags.py --help

Usage: compute_tcdiags.py [-h] [-tcmsi] [-tcpi] [-tcstrflw] yaml

Tropical cyclone diagnostics computation(s) application interface.

Positional Arguments:
  yaml        YAML-formatted tropical cyclone diagnostics configuration file.

Optional Arguments:
  -h, --help  show this help message and exit
  -tcmsi      YAML-formatted file containing the TC multi-scale intensity application configuration.
  -tcpi       YAML-formatted file containing the TC potential intensity application configuration.
  -tcstrflw   YAML-formatted file containing the TC steering application configuration.

user@host:$ ./compute_tcdiags.py /path/to/ufs_tcdiags/parm/tcdiags.demo.yaml -tcmsi

Jupyter Notebook#

The TC MSI application can also be executed from within a Jupyter notebook as follows.

user@host:$ export PYTHONPATH="/path/to/ufs_tcdiags/jupyter":"/path/to/ufs_tcdiags/ush":"${PYTHONPATH}"
user@host:$ cd /path/to/ufs_tcdiags/jupyter/notebooks
user@host:$ /path/to/jupyter notebook tcdiags.vurk2014_msi.ipynb

This action behaves as the terminal instance for the application (above) but is executed from within the respective Jupyter notebook.

Docker Container#

The TC MSI application may be executed within a supporting Docker container as follows.

user@host:$ /path/to/docker run -v /path/to/ufs_tcdiags:/home/ufs_tcdiags -it ghcr.io/henrywinterbottom-noaa/ubuntu20.04.ufs_tcdiags:latest
user@host:$ export PYTHONPATH="/home/ufs_tcdiags/ush":"${PYTHONPATH}"
user@host:$ cd /home/ufs_tcdiags/scripts
user@host:$ ./compute_tcdiags.py --help

Usage: compute_tcdiags.py [-h] [-tcmsi] [-tcpi] [-tcstrflw] yaml

Tropical cyclone diagnostics computation(s) application interface.

Positional Arguments:
  yaml        YAML-formatted tropical cyclone diagnostics configuration file.

Optional Arguments:
  -h, --help  show this help message and exit
  -tcmsi      YAML-formatted file containing the TC multi-scale intensity application configuration.
  -tcpi       YAML-formatted file containing the TC potential intensity application configuration.
  -tcstrflw   YAML-formatted file containing the TC steering application configuration.

user@host:$ ./compute_tcdiags.py /home/ufs_tcdiags/parm/tcdiags.demo.yaml -tcmsi

Jupyter Notebook Within a Docker Container#

Similar to the Jupyter notebook and Docker container examples above, the Jupyter notebook can also be launched from within the Docker container. This can be accomplished as follows.

user@host:$ /path/to/docker run -v /path/to/ufs_tcdiags:/home/ufs_tcdiags -p 8888:8888 -it ghcr.io/henrywinterbottom-noaa/ubuntu20.04.ufs_tcdiags:latest
user@host:$ export PYTHONPATH="/home/ufs_tcdiags/ush":"/home/ufs_tcdiags/jupyter":"${PYTHONPATH}"
user@host:$ cd /path/to/ufs_tcdiags/jupyter/notebooks
user@host:$ /path/to/jupyter notebook --ip=0.0.0.0 --port=8888 --no-browser --allow-root tcdiags.vurk2014_msi.ipynb

The above action will provide the user a local HTML path and an associated token as follows.

To access the server, open this file in a browser:
    file:///root/.local/share/jupyter/runtime/jpserver-21362-open.html
Or copy and paste one of these URLs:
    http://5186640b39b0:8889/tree?token=abcdefghijklmnopqrstuvwxwy0123456789ABCDEFGHIJKL
    http://127.0.0.1:8889/tree?token=abcdefghijklmnopqrstuvwxwy0123456789ABCDEFGHIJKL

Copy the paste the token attribute that begins with http://127.0.0.1:8889 into a web browser address bar and execute the respective Jupyter notebook as described above.

Example Results#

The following example for TC AL14 is computed from a nominally 1.0-degree ERA5 analysis valid 0000 UTC 01 October 2016.

TC 14L MSI Attributes	Value (Units)
Center Latitude	13.4 (degrees)
Center Longitude	-72 (degrees)
Maximum 10-meter Wind Speed	22.09724998474121 (m/s)
Azimuth of Maximum 10-meter Wind Speed	60.000000000000135 (degrees)
Radius of Maximum 10-meter Wind Speed	120000.0 (m)
Wavenumber-0 Maximum Wind Speed	18.144823659624375 (m/s)
Wavenumber-1 Maximum Wind Speed	3.1016818996685966 (m/s)
Wavenumbers (0+1) Maximum Wind Speed	19.831703222806482 (m/s)
Residual Wavenumber Maximum Wind Speed	2.265546761934729 (m/s)
Radius of Maximum Wind Latitude	12.373095556722303 (degrees)
Radius of Maximum Wind Longitude	-72.30604517770875 (degrees)

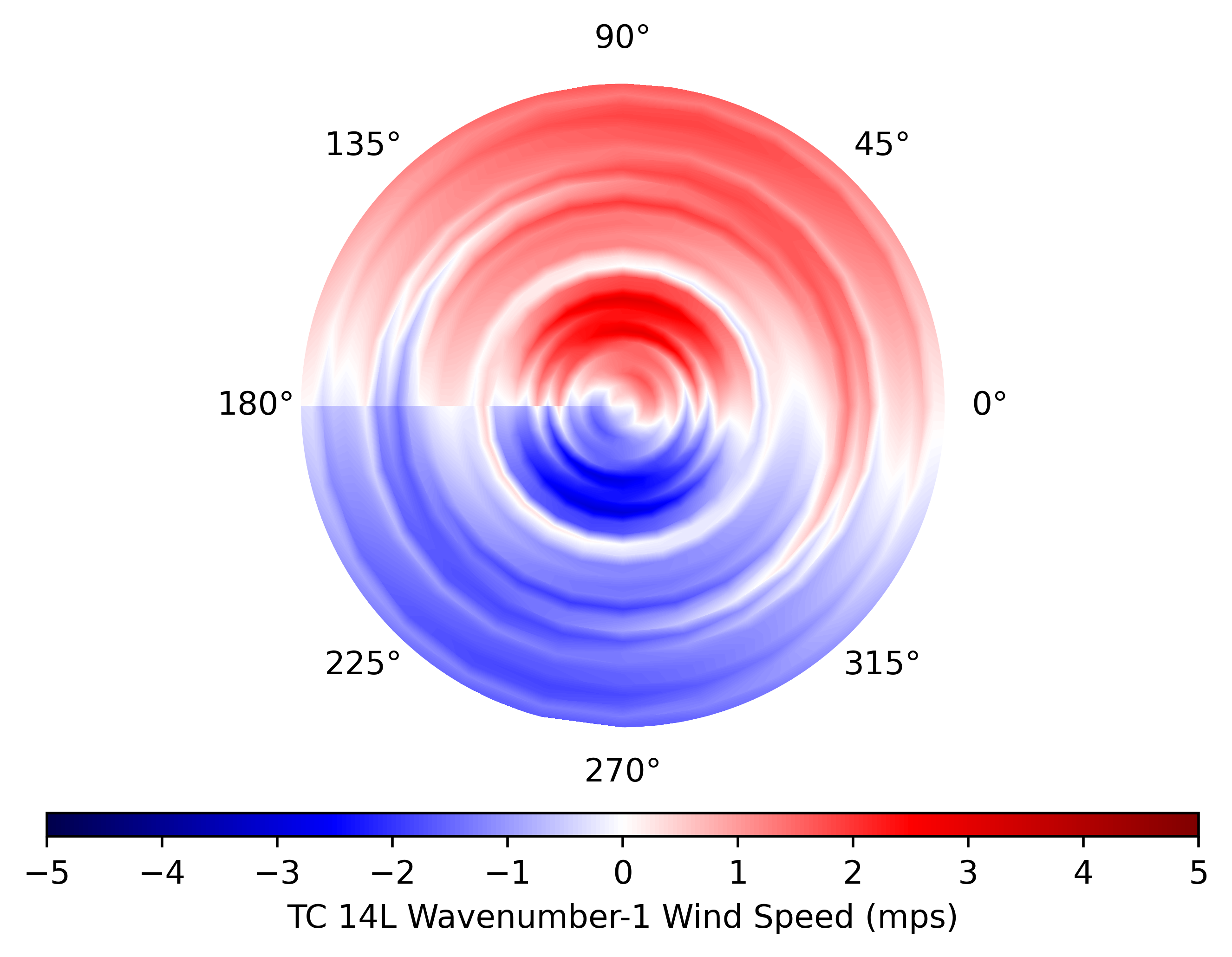

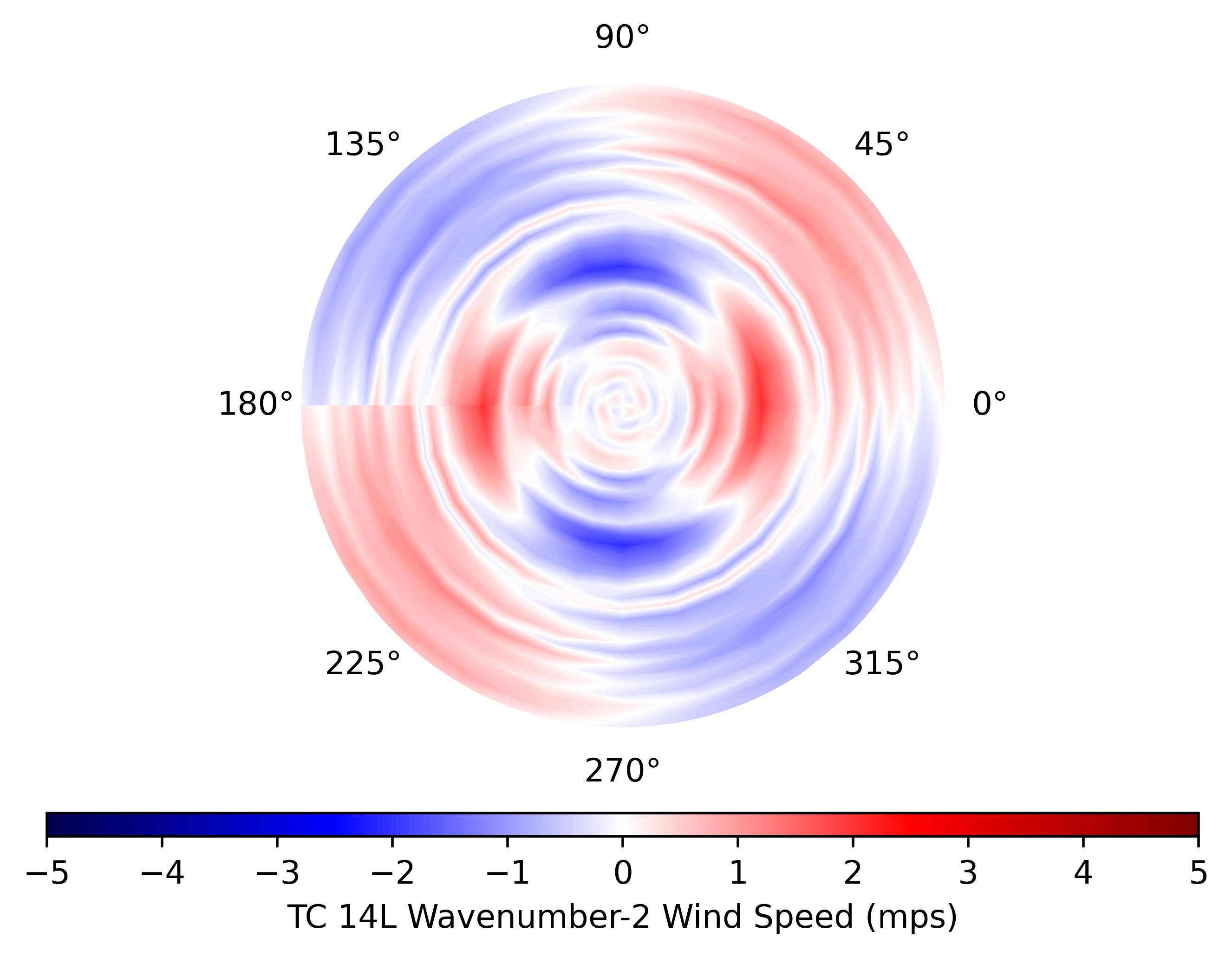

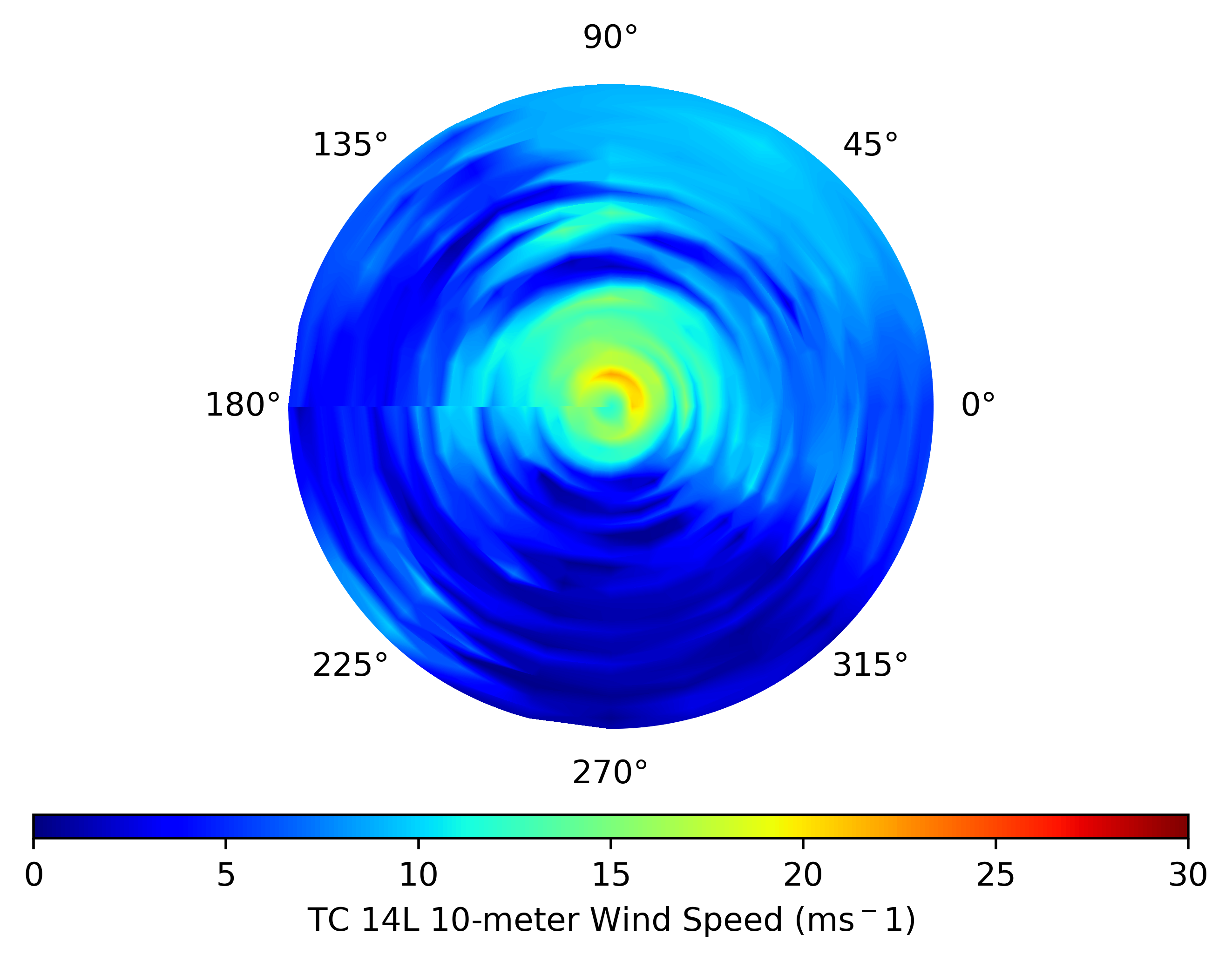

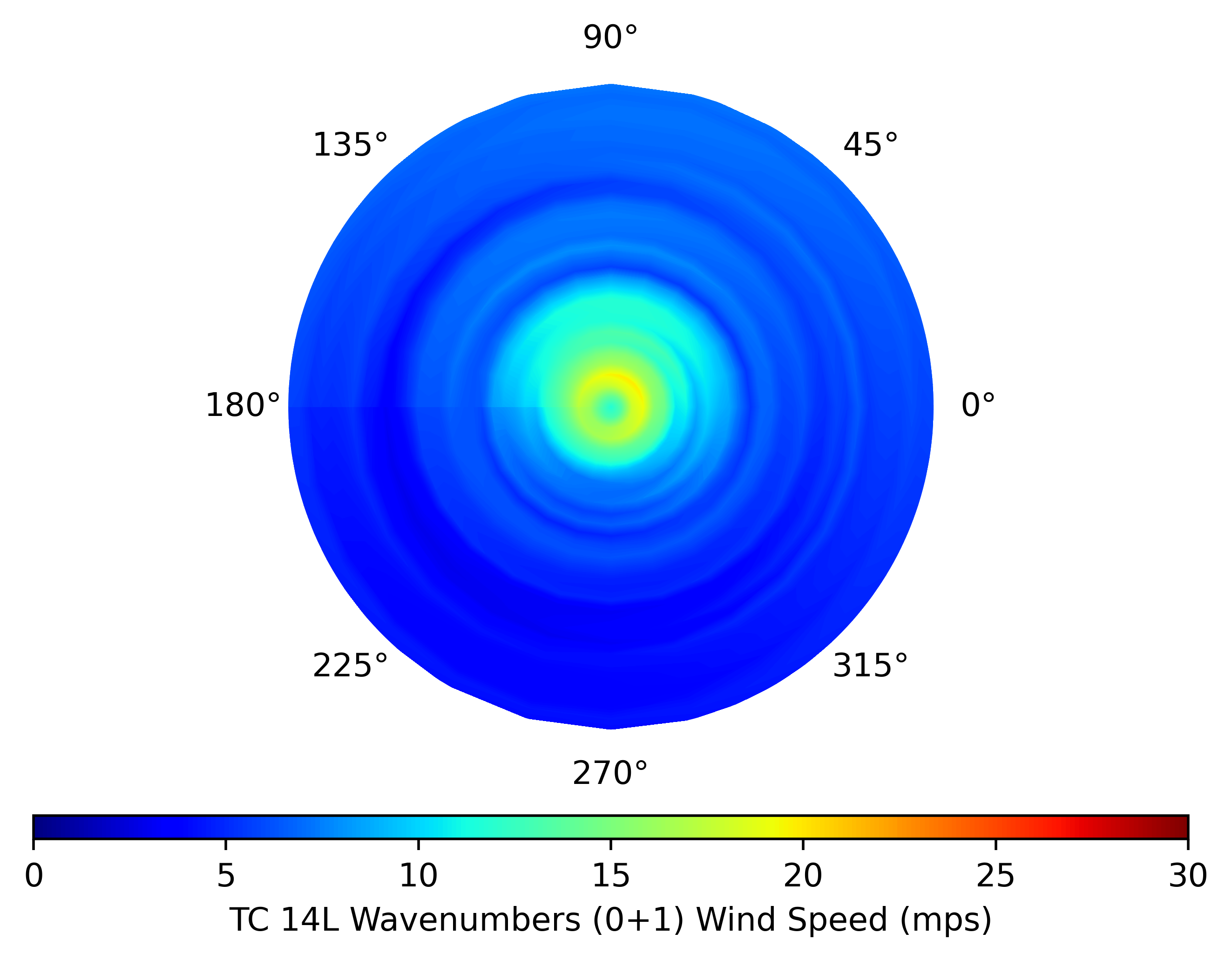

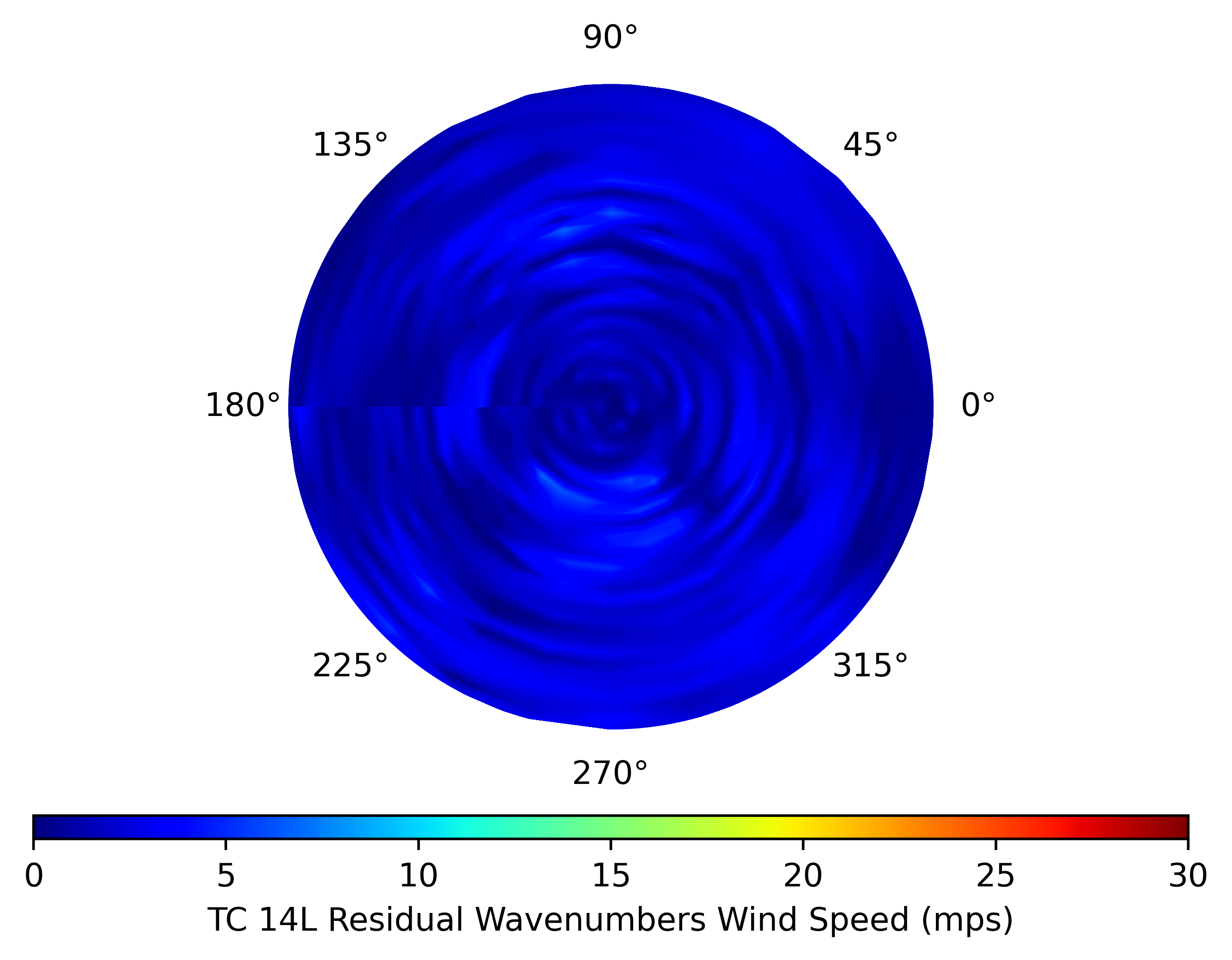

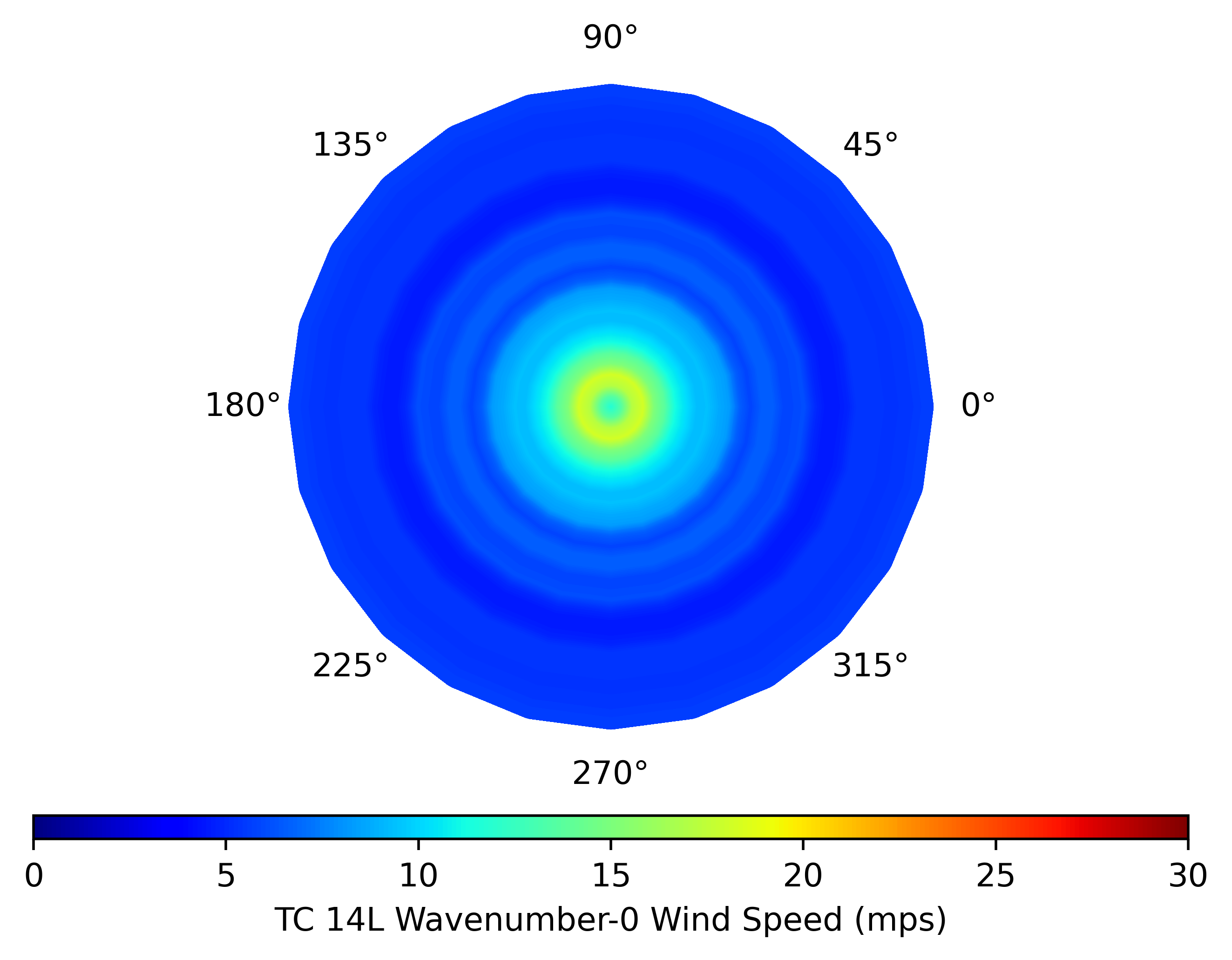

Shown above are the TC multi-scale intensity attributes for TC AL14 as follows. 10-meter wind-speed (top-left); 10-meter wind-speed wave-number 0 component (top-right); 10-meter wind-speed wave-number 1 component (middle-left); 10-meter wind-speed wave-numbers (0 + 1) component (middle-right); 10-meter wind-speed wave-number 2 component (bottom-left); and 10-meter wind-speed residual wave-numbers (bottom-right).
